Product

Product Center

Product List

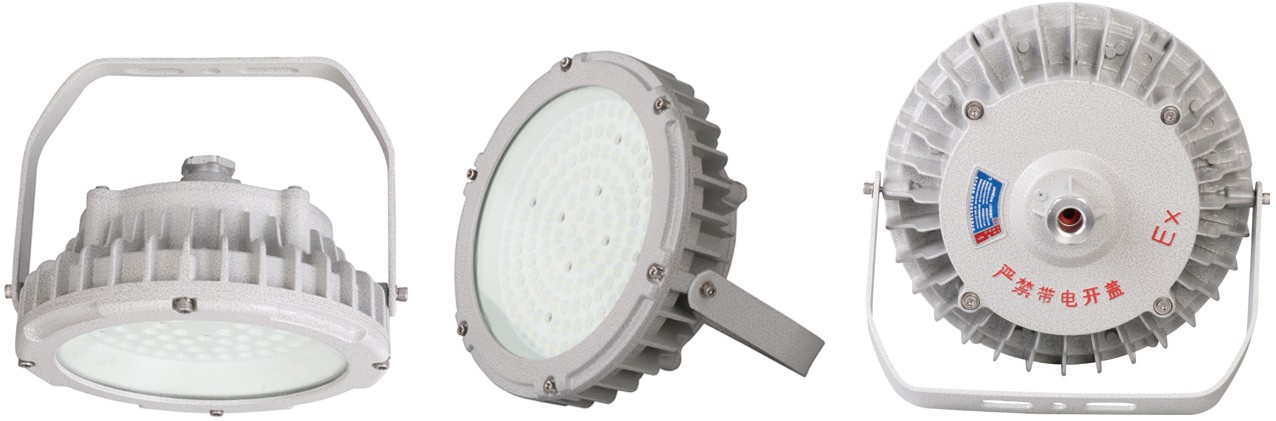

BFL830 Explosion proof LED Flood Light

BFL830 Explosion proof LED Flood Light

BFL830 Explosion proof LED Flood Light

Explosion proof grade: Ex db eb IIC T6 Gb/Ex tb IIIC T80 ℃ Db● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (crystal element)● Power: I: 30-60W, II: 70-120W, III: 150W● Light efficiency: 120Lm/W● Dimensions: I: Φ 207 × 135, II: Φ 260 × 140, III: 300 × 145● Weight: I: 2.8Kg, II: 4.0Kg, III: 5.0Kg● Installation methods: lifting, wall mounting

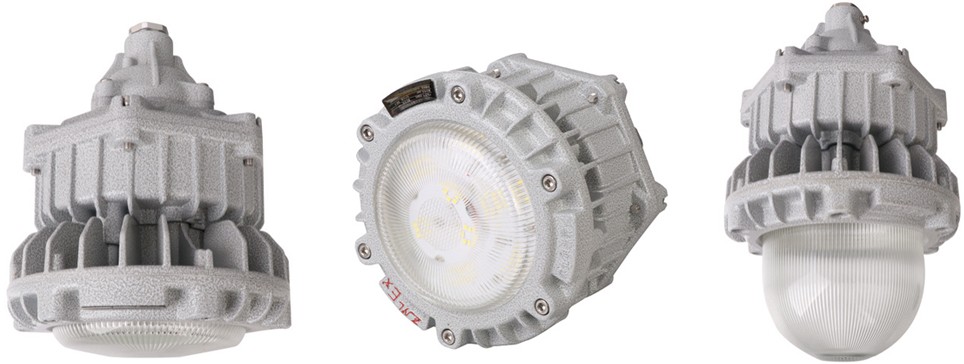

BFL829 Explosion proof LED Flood Light

BFL829 Explosion proof LED Flood Light

BFL829 Explosion proof LED Flood Light

Explosion proof grade: Ex db eb IIC T6 Gb/Ex tb IIIC T80 ℃ Db● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: I: 30-50W, II: 60-100W, III: 120-150W, IV: 200-250W● Light efficiency: 120Lm/W● Dimensions: I: Φ 180 × 225, II: Φ 230 × 235, III: Φ 280 × 235, IV: Φ 330 × 250● Weight: I: 3.4Kg, II: 5.1Kg● Installation methods: lifting, wall mounting

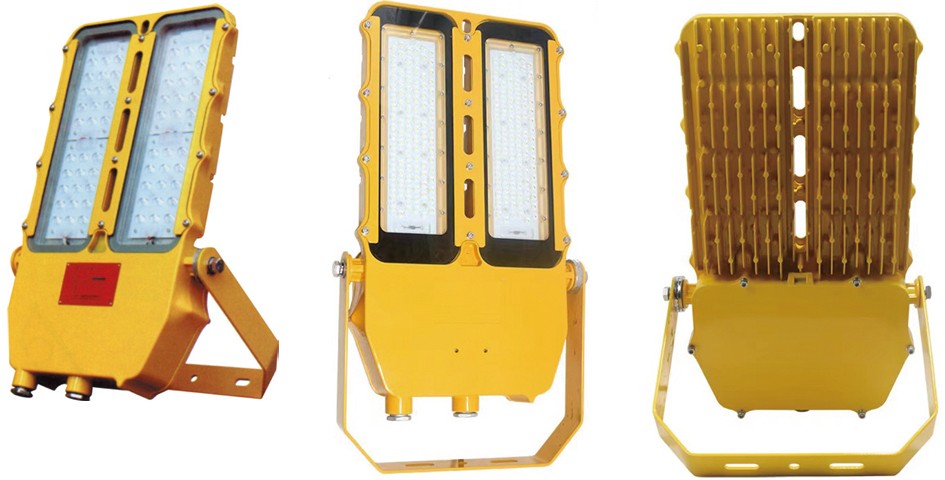

BFL833 Explosion proof LED Flood Light and Street Lamp

BFL833 Explosion proof LED Flood Light and Street Lamp

BFL833 Explosion proof LED Flood Light and Street Lamp

Explosion proof rating: Ex ec mb IIC T5/T6 Gb; Ex tc IIIC T80℃ /T95℃ Dc● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: 100-200W● Light efficiency: 120Lm/W● Dimensions: Φ 550 × 320● Weight: 9.74Kg● Installation methods: bracket type, street lamp type

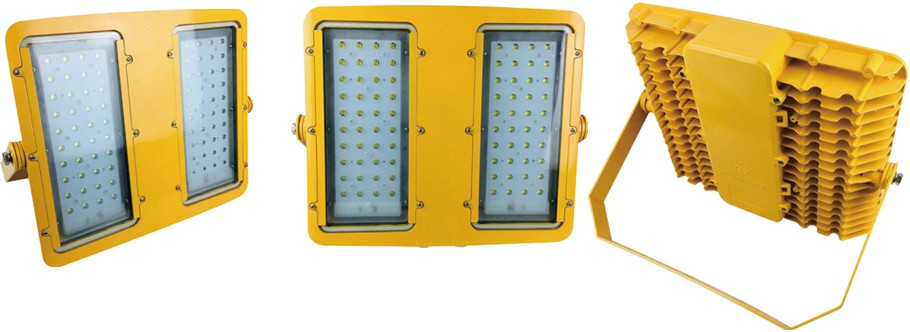

BFL834 explosion-proof LED projection and floodlight

BFL834 explosion-proof LED projection and floodlight

BFL834 explosion-proof LED projection and floodlight

Explosion proof grade: Ex mbnA IIC T6 Gb/Ex tb IIIC T80 ℃ Db● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: 200W (single group), 400W (double group)● Light efficiency: 120Lm/W● Dimensions: Φ 435 × 450● Weight: 11Kg● Installation method: bracket type

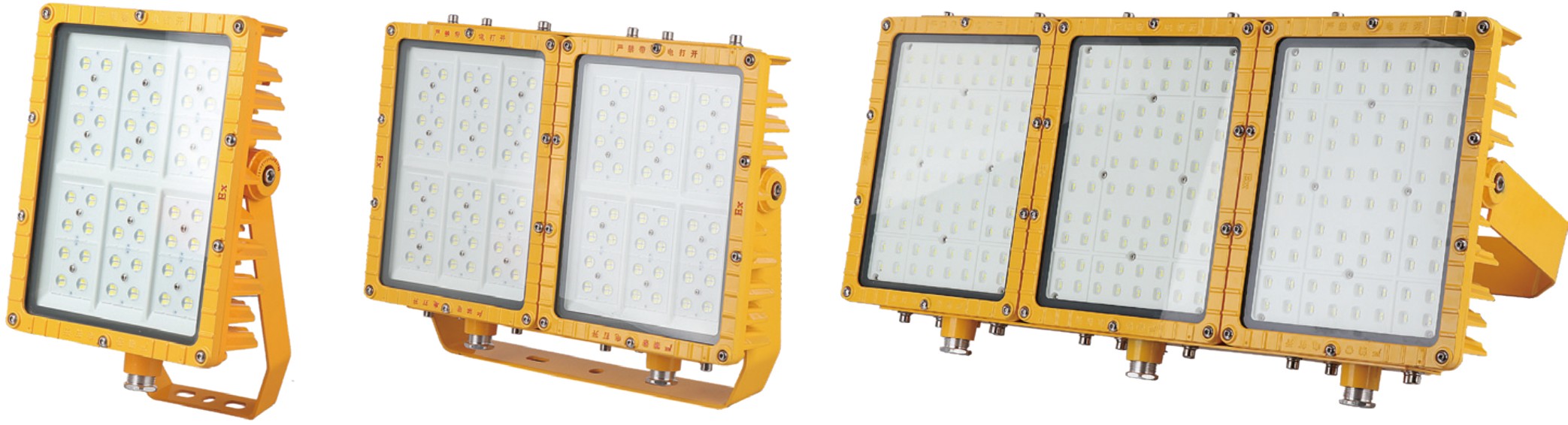

BFL835 Explosion proof LED Flood Light

BFL835 Explosion proof LED Flood Light

BFL835 Explosion proof LED Flood Light

Explosion proof grade: Ex mbnA IIC T6 Gb/Ex tb IIIC T80 ℃ Db● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: I: 100-150W, II: 200-250W, III: 300-500W, IV: 600-800W● Light efficiency: 120Lm/W● Dimensions: I: 335 × 240, II: 350 × 490, III: 350 × 735, IV: 680 × 490● Weight: I: 6.3Kg, II: 16.8Kg, III: 21.5Kg, IV: 30kg● Installation method: bracket type, street lamp test

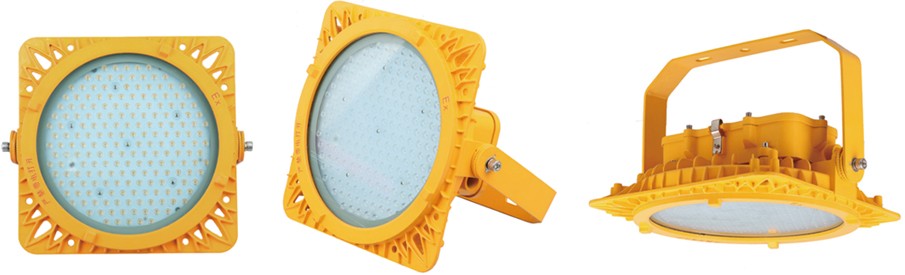

BFL836 explosion-proof LED projection and floodlight

BFL836 explosion-proof LED projection and floodlight

BFL836 explosion-proof LED projection and floodlight

Explosion proof grade: Ex db eb IIC T6 Gb/Ex tb IIIC T80 ℃ Db● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: 200W (single group), 400W (double group)● Light efficiency: 120Lm/W● Dimensions: 388 × 340 × 138mm● Weight: 11.5Kg● Lens emission angle: 45 °● Installation method: bracket type

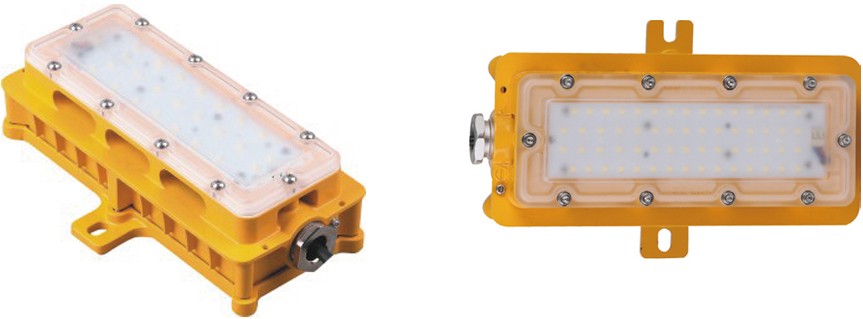

BFL837 Explosion proof LED Flood Light

BFL837 Explosion proof LED Flood Light

BFL837 Explosion proof LED Flood Light

Explosion proof grade: Ex nR IIC T6 Gb/Ex tc IIIC T80 ℃ Dc● Rated voltage: 220VAC/50Hz● Rated power: 15W~35W● Light source: LED (Osram)● Light efficiency: 110Lm/W● Dimensions: 230 × 150 × 72.5● Product weight: 1.5kg● Installation method: Ceiling mounted

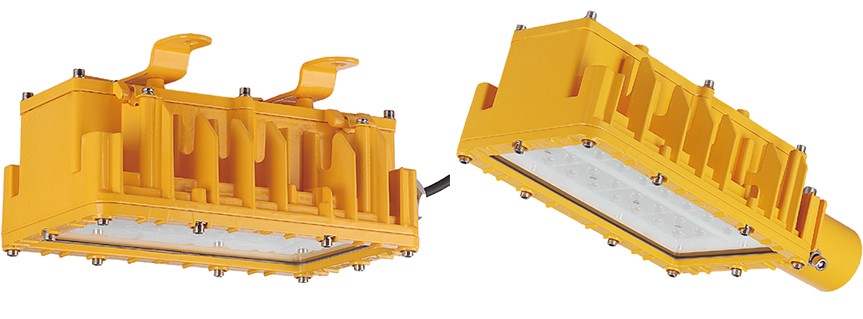

BFL838 Explosion proof LED Flood Light

BFL838 Explosion proof LED Flood Light

BFL838 Explosion proof LED Flood Light

Explosion proof grade: Ex nR IIC T6 Gb/Ex tc IIIC T80 ℃ Dc● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: 50-100W (per unit)● Light efficiency: 120Lm/W● Dimensions: 300 × 160 × 120mm● Weight: 3.3Kg● Lens emission angle: 60 ° 90 ° 120 °● Installation methods: ceiling mounted, street lamp mounted

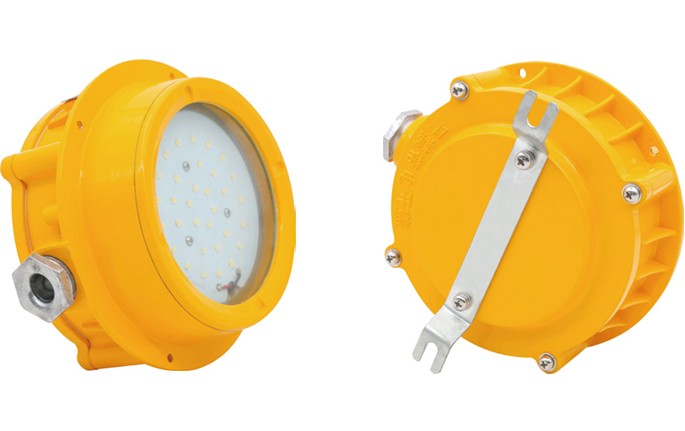

BFL840 Explosion proof LED Platform Light

BFL840 Explosion proof LED Platform Light

BFL840 Explosion proof LED Platform Light

Explosion proof grade: Ex nR IIC T6 Gb/Ex tc IIIC T80 ℃ Dc● Rated voltage: AC220/50Hz● Applicable voltage: AC85-265V● Light source: LED (Osram)● Power: 20W● Light efficiency: 120Lm/W● Dimensions: Φ 160 × 128mm● Weight: 1.6Kg● Installation method: lifting, ceiling installation

«
